Tote-to-Person Picking

The Geek+ RoboShuttle™ bin-to-person picking solution can achieve high-density storage by using the innovative Geek+ Roboshuttle and narrow aisle design while maintaining high efficiency.

Flexible bin handling, subverting conventional bin inventory model, ROI within 3 years

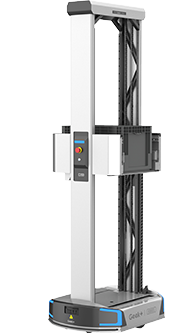

  • C200S-background-1 C200S-1

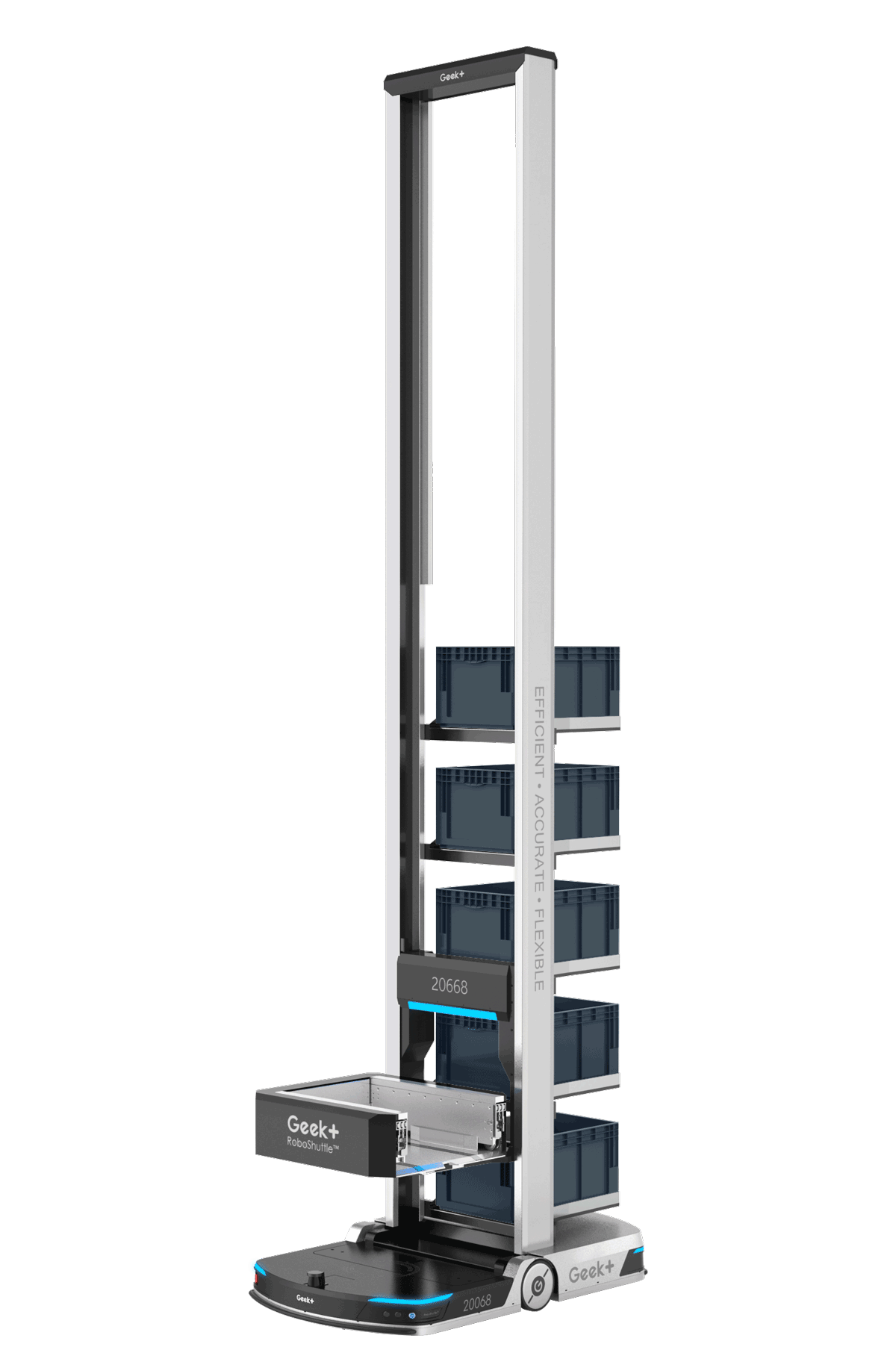

  • C200M C200M-1-1
  • Dimension Self weight Maximum payload Maximum lifting height Minimum lifting time Maximum speed Maximum rotation speed Maximum slope angle Stop accuracy Navigation Obstacle detection distance Power supply Battery life Run time Certification Payload size Working temperature Charging temperature
  • L950*W702*H2500/3400 304 40 2915 8 2 90°/1.5s,180°/2s 2.5° (slope 4.4%) <10 Inertial sensors + QR code 2m infrared / 3m laser Lithium-ion, DC50.4V, 39 Ah Full charging and discharging >2000 cycles Charging 10 minutes working 2~3 hours CE 400*300*250~600*400*350 -20~50 0~45
  • L1490*W870*H2500~5000 470 150 4865 12 1.5m/s 90°/2s,180°/3s - <10 Inertial sensors + QR code 3m laser Lithium-ion,DC50.4V,42Ah Full charging and discharging >2000 cycles Charging 10 minutes working 2~3 hours CE 400*300*200~600*400*500 -20~50 0~45
  • mm kg kg mm s m/s °/s ° mm - m - - h - mm °C °C
Award-winning solution leading the industry innovation

The Geek+ RoboShuttle™ system was certified as "Best of Intralogistics 2020" by the world-renowned IFOY award, one of the industry's most prestigious recognitions. Compared with the traditional shuttle system, RoboShuttle has higher flexibility, efficiency and return-on-investment.

  • High box picking efficiency, up to 300 boxs / hour / station
  • Flexible to fit customers' existing shelves and lofts
  • Fast implementation and low ground load
  • Smaller investment and shorter payback period, ROI about 1~3 years
  • Add or remove robots according to business waves easily
  • No need for high-precision rails and easy to maintain
  • Can be connected to a variety of automation equipment such as conveyor lines and other robots, which is convenient for integration and customized project deployment

Customers value

Rapid ROI

  • ROI in less than 3 years
  • Lower initial investment required compared to traditional automation equipment

High storage capacity

  • Strongest single floor storage AMR solution, multiplies warehouse storage capacity by 2.5 times
  • Make full use of height space which make the storage capacity is same as that of multi-shuttle

High efficiency

  • Ingenious ergonomic design makes the highest picking efficiency AMR solution ever, reach 3 times as manual’s
  • 99.997% accuracy

High flexibility

  • Add or remove robots on demand, switch to manual picking easily
  • Customizable solutions for multiple industries
  • No single point of failure

Rapid deployment

  • Full system deployment under 2 months
  • Reuse customers' existing shelves and lofts, rapid deployment

Covering a wide range of application scenes

Geek+ Bin-to-Person Picking System is suitable for cosmetics, apparel, e-commerce, pharmaceutical, 3C, automobile manufacturing, and many other industries.

Single Bin-to-Person

  • Small- to medium-sized parts picking; suitable for bin, tote, carton
  • The robot can lifts the box to the most comfortable position for picking easily, to make the picking efficiency reach 3 times that of manual

Extended-Depth Bin-to-Person

  • Small- to medium-sized parts picking; suitable for bin, tote, carton
  • High density storage, up to 2.5 times as traditional shelf storage

Combination solution

  • Goods-to-Person picking
  • Robot arm
  • Connection among multi-process
