228x349-S

High ROI

  • 2 - 3 Years Return on Investment
  • Lower investment needed compared to traditional automation equipment
  • Staged investments allowed to fit client business needs

High Automation

  • Replaces manual sorting
  • Increases sorting efficiency and accuracy
  • Lowers labor intensity

High Efficiency

  • Efficiency is 10 times that of manual labor
  • Lowers manpower costs
  • Fully automated process management

High Flexibility

  • Robot quantity can be flexibly adjusted
  • Diverse range of robots to suit client needs
  • High performing and professional system design

Efficient Implementation

  • Short deployment period
  • Containerized deployment
  • Systems can be implemented in stages according to client needs
301x268-S10C-1

Payload

10%

10kg

Carrier Surface Height

200mm

Maximum Load Height

400*400mm

Communication

WIFI, IEEE802.11a/b/g/n
Length:460mm
Width:400mm
Height:200mm
Weight:18kg
Maximum Robot Speed:2.5m/s

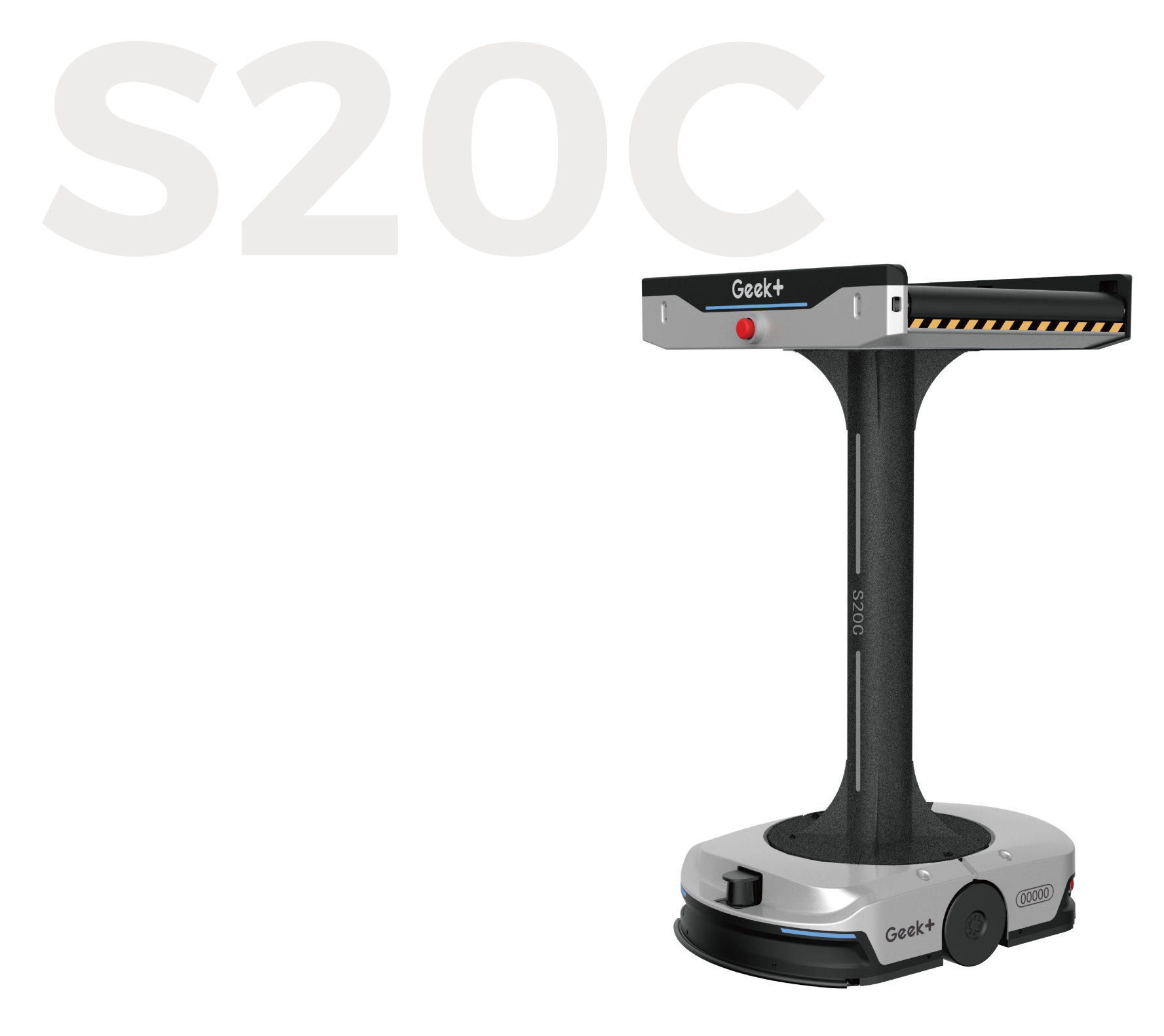

301x268-S20C-1

Payload

20%

20kg

Carrier Surface Height

1000mm

Maximum Load Height

600*420*400mm

Communication

WIFI, IEEE802.11a/b/g/n
Length:560mm
Width:600mm
Height:1027mm
Weight:75kg
Maximum Robot Speed:2.5m/s

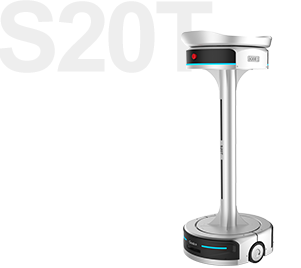

301x268-S20T-1

Payload

8%

8kg

Carrier Surface Height

1250mm

Maximum Load Height

500*400*300mm

Communication

WIFI, IEEE802.11a/b/g/n
Length:560mm
Width:510mm
Height:1335mm
Weight:70kg
Maximum Robot Speed:2.5m/s
301x268-S35C-1

Payload

35%

35kg

Carrier Surface Height

850mm

Maximum Load Height

640*460*300mm

Communication

WIFI, IEEE802.11a/b/g/n
Length:740mm
Width:560mm
Height:850mm
Weight:150kg
Maximum Robot Speed:2.5m/s

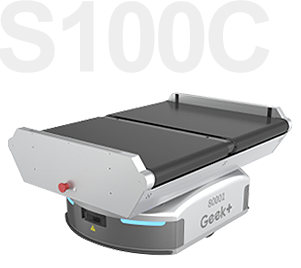

301x268-S100C-2

Payload

80%

100kg

Carrier Surface Height

540mm

Maximum Load Height

1170*832*540mm

Communication

WIFI, IEEE802.11b/g
Length:1150mm
Width:832mm
Height:540mm
Weight:21kg
Maximum Robot Speed:2.0m/s
