RSSERIES-1

High Efficiency

  •  2 - 3 x picking efficiency compared to manual operations

Cost-efficient

  • The cost is about 1/2 more than the same size
  • ROI within 3 years

Flexibility

  • Flexibly increase or decrease the number of robots according to varying business needs
  • Fast implementation and relocation

Stability

  • Real-time monitoring of robot operation

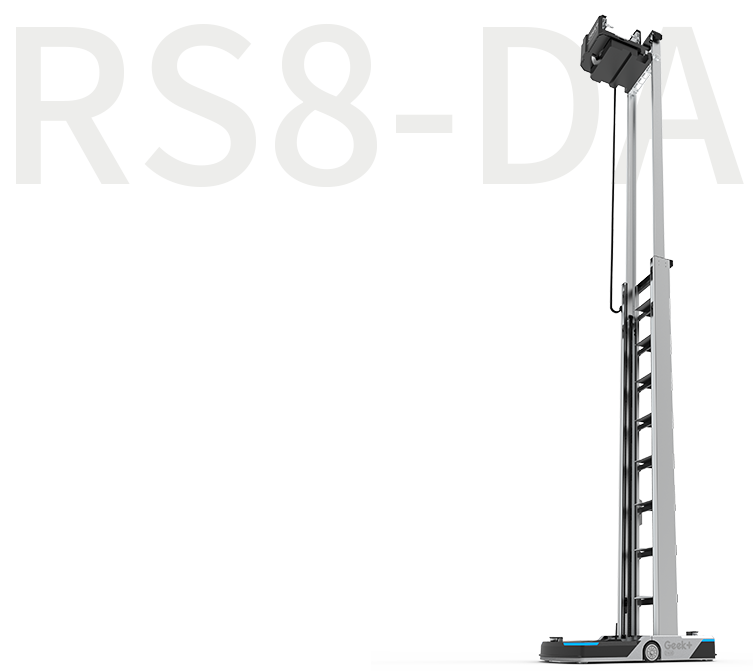

RS8-DA 拷贝

Maximum Lifting Load

40%

40kg

Rack Height

7820mm

Maximum No Load Speed(Unload)

1.8/s

Maximum No Load Speed(Full Loaded)

1.5/s
Length:1800mm
Width:1000mm
Height:8145mm
Weight:1000kg
Minimum Lifting Time:8s
RS5-DA-1

Maximum Lifting Load

42%

40kg

Rack Height

4850mm

Maximum Speed (Unloaded)

1.8/s

Maximum Speed (Fully Loaded)

1.5m/s
Length:1490mm
Width:870mm
Height:5100mm
Weight:500kg
Minimum Lifting Time:12s
RS5-D-1

Maximum Lifting Load

40%

40kg

Rack Height

4850mm

Maximum Speed (Unloaded)

1.8m/s

Maximum Speed (Fully Loaded)

1.5m/s
Length:1490mm
Width:870mm
Height:5100mm
Weight:470kg
Minimum Lifting Time:12s

RS2-1

Maximum Lifting Load

parameter-icon
40%

40kg

Rack Height

2015mm

Maximum No Load Speed

2m/s

Maximum Full Load Speed

2m/s
Length:950mm
Width:710mm
Height:2500mm
Weight:304kg
Minimum Lifting Time:8s

RoboShuttle+ShuttleDock Tote-to-Person Solution



A Double-deep tote-to-person robot supports high-density storage above 8 meters. The extended arms can access 2 totes at once and the robot can transfer multiple totes to the workstation.

ShuttleDock picking workstation adopts a pair of patented tote uploading machines, which is ShuttleDock to work with RS robot to realize a handling capacity of more than 1000 totes/hour. This typical capacity can be transplanted to 2 picking points, and each point can realize an optimal human-machine matched efficiency picking rate at 500 totes/hour.

Applications:

- Medium-to-small sized picking scenarios;

- High-density whole tote storage and pick-up scenarios

- Applicable industry:  Apparel, Pharmaceuticals

图片1-1

RoboShuttle+P40 Tote-to-Person Solution



This solution combines the advantages of RoboShuttle and P40 robots. RS robot is responsible for the transfer of the totes between storage shelves and buffer shelves vertically, and docking with the P40 robot to quickly carry the hit tote to the workstation for picking. The two robots achieve the optimal ratio through algorithm optimization.

Applications:

- MFC

- Picking scenarios of small volume, massive SKUs, and large flow of totes

- Return Scenarios

- Applicable industry: Apparel, retails

RS8+P40.1247
