Shelf-to-Person

Hybrid Storage • Quick Deployment • Easy Scalability • High-throughput

Shelf-to-Person PopPick System

The game-changing Geek+ picking system boosts efficiency by 300%+

Shelf-to-Person Picking

Geek+ Shelf-to-Person solution uses P series robots to move the inventory shelves and pallets to the picking station, completely eliminating the redundant walking of the picking workers, improving the accuracy of the picking, and reducing labor intensity. Compared to manual picking, the picking efficiency is improved by 2 to 3 times.

High Flexibility · Multi-size compatibility · High efficiency

PopPick

Pop Out →Pick easy

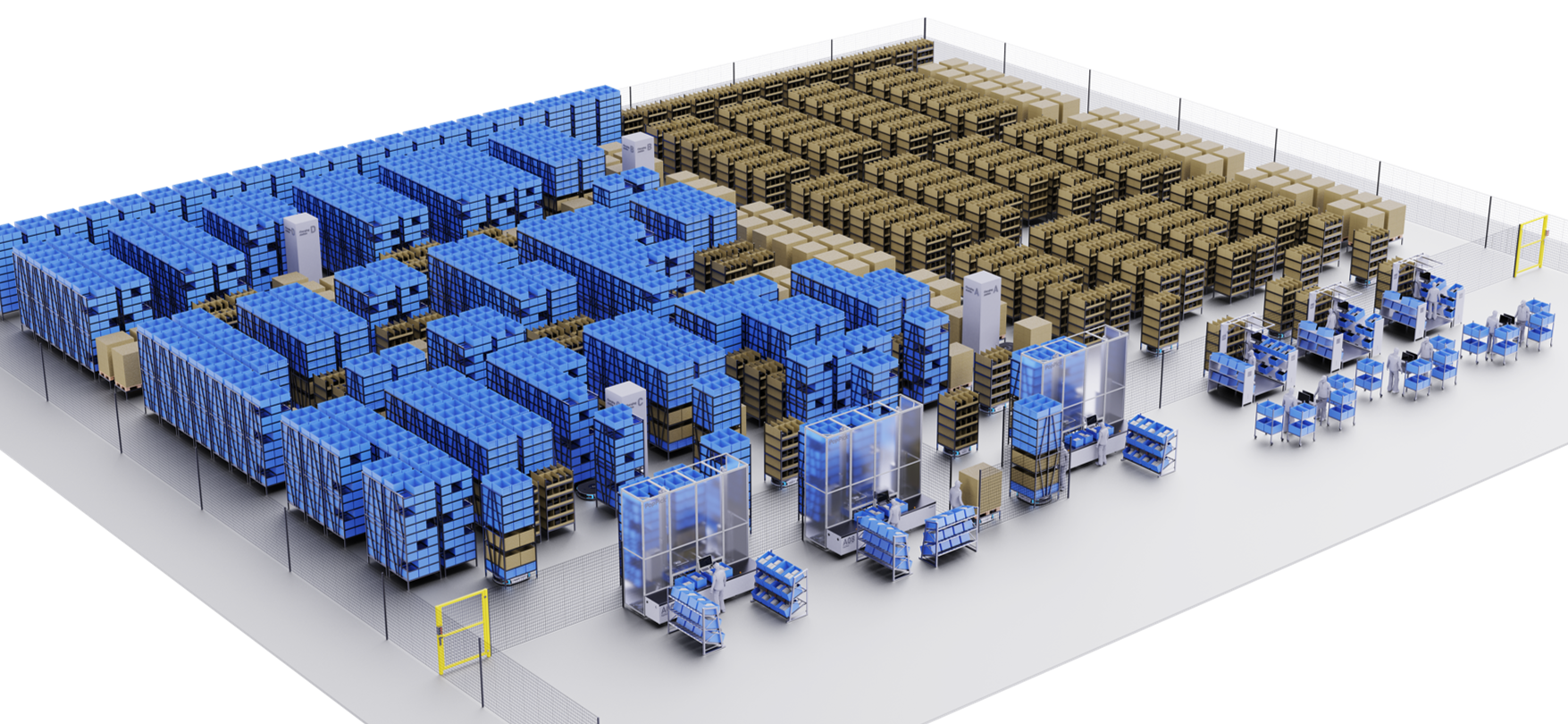

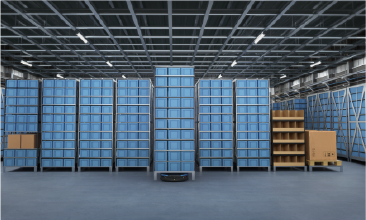

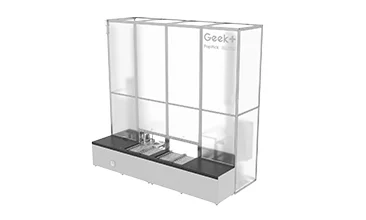

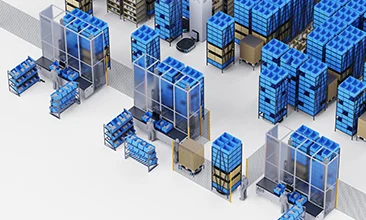

PopPick is our revolutionary, new shelf-to-person system, which pairs an upgraded moveable shelf carried by mobile robots with the industry's first dual-unit picking station. As an all-in-one system, PopPick creatively combines picking and storing totes, shelves, and pallets. With advanced technology and smart autonomous mobile robots (AMRs), PopPick can increase warehouse picking efficiency to up to max 650 totes per hour and optimize throughput capacity by a factor of 2.

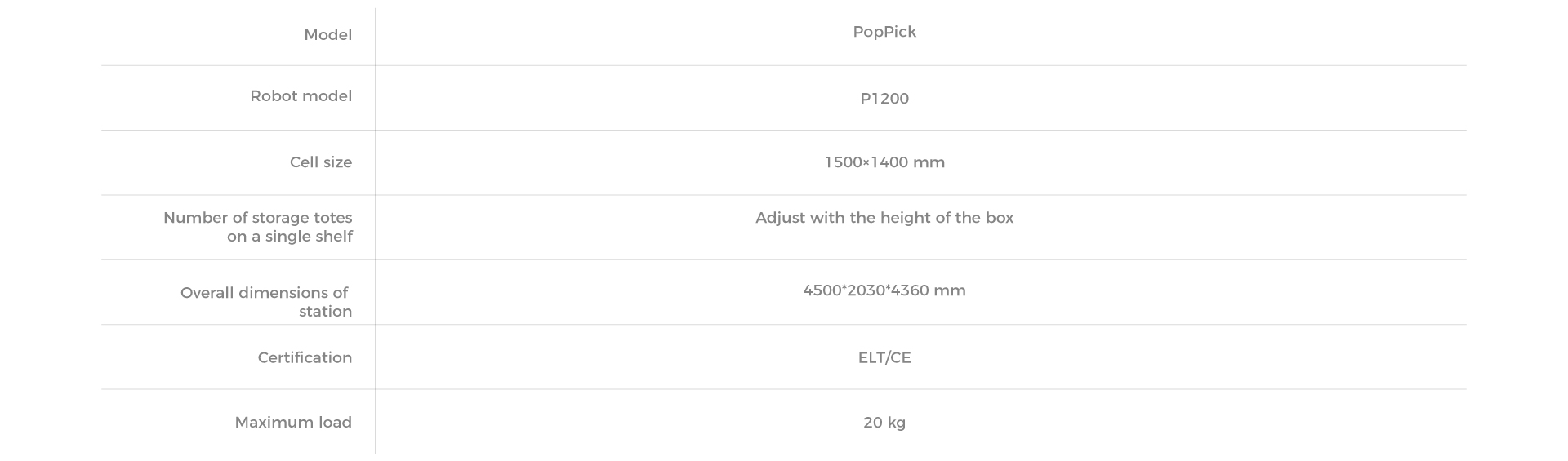

Model Rack dimension Number of storage totes on a single shelf Overall dimensions of station Box size
PopPick 1346*1260*3832mm Adjusts with the height of the box 4500*2030*4360mm 600*400*(150~400)mm
Tote taking efficiency Maximum load
650 totes/H/station 20Kg

Shelf-to-Person Standard System

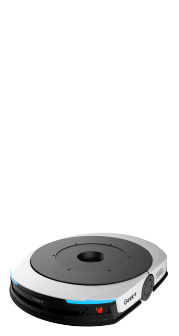

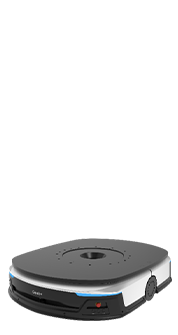

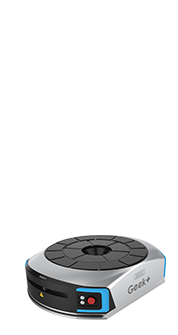

Geek+ shelf-to-person standard system uses P series AMR picking robots to move the inventory shelves and pallets to the picking station, completely eliminating the redundant walking of the picking workers, improving picking accuracy, and reducing labor intensity. Compared to manual picking, automated picking solutions improve efficiency by 2 to 3 times.

Dimension Self weight Maximum payload Maximum lifting height Minimum lifting time Maximum speed Maximum rotation speed Maximum slope angle Stop accuracy Navigation Obstacle detection distance Power supply Battery life Run time Certification Payload size Working temperature Charging temperature
L950*W702*H275 144 600 60 4 2m/s without load 1.6m/s full load 90°/1.5s，180°/2s 2.5° (slope 4.4%) <±10 Inertial sensors + QR code 2m infrared / 3m laser Lithium-ion, DC50.4V, 39 Ah Full charging and discharging >2000 cycles Charging 10 minutes working 2~3 hours CE、ETL、FCC L880*W880 -10~45 0~45
L1090*W830*H275 162 1000 60 4 2m/s without load 1.6m/s full load 90°/1.5s，180°/2s 2.5° (slope 4.4%) <±10 Inertial sensors + QR code 2m infrared / 3m laser Lithium-ion, DC50.4V, 39 Ah Full charging and discharging >2000 cycles Charging 10 minutes working 2~3 hours CE、ETL、FCC 1000*1000/ 1020*1220/ 1000*1200 -10~45 0~45
L1325*W1020*H275mm 320 1200 60 4 1.5m/s without load，1.2m/s full load 90°/2.5s，180°/4s - <±10mm, ±1° Inertial sensors + QR code 3m laser Lithium-ion，DC50.4V，39Ah - - CE 1250*1250~1600*1600 -20-50 -10~45
mm kg kg mm s m/s °/s ° mm - m - - h - mm °C °C

Maximum efficiency empowered by smart algorithms

Empowered by Geek+ proprietary smart algorithms, the robotic retrieval system uses the fewest AMR picking robots possible to achieve maximum efficiency while improving warehouse storage capabilities.

Its main functions include:

Combined order optimization and picking
Dynamic wave selection process
Inventory management and smart tallying of goods
Adjustment of inventory layout
Work station and robot task outline
RFID technology integration
Heat analysis and goods placement recommendation
The shelf height is up to 2.8m and the storage capacity is increased by 20%.

Covering a wide range of application scenarios

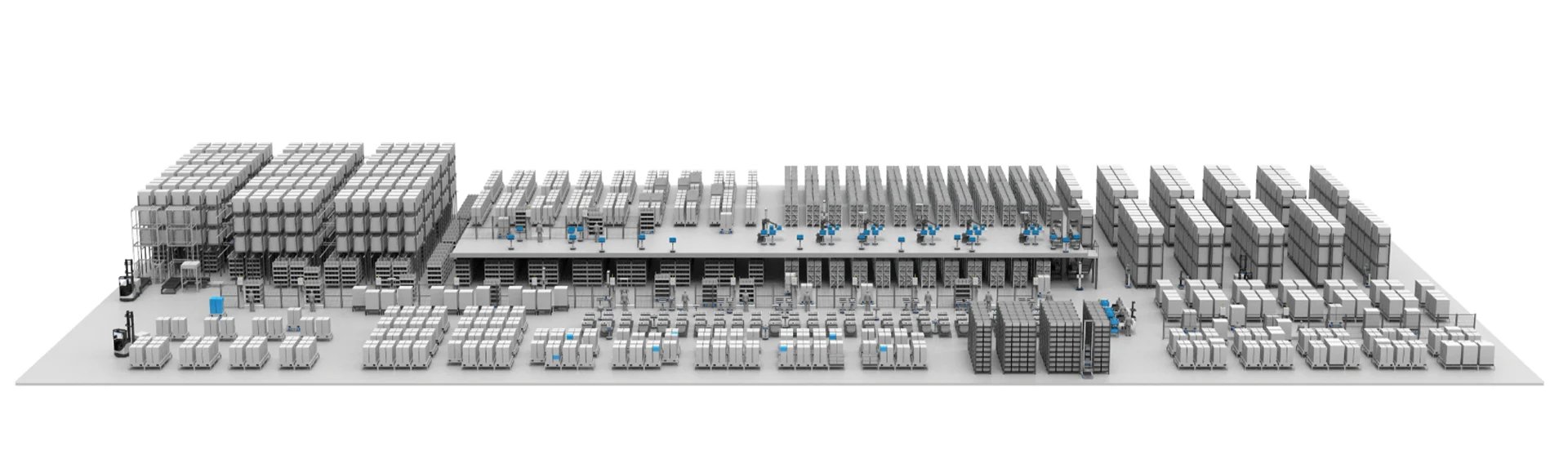

Geek+ Goods-to-Person Picking System is suitable for retail, third-party logistics, apparel, e-commerce, pharmaceutical, 3C, automobile manufacturing, and many other industries.

Shelf-to-Person (Single layer)

Small- to medium-sized parts picking by bin and by piece

Multi-layer Shelf-to-Person

Multi-tenants, high inventory capacity requirement, the order quantity fluctuates greatly and the order structure is complicated

Combination Solution

Movable re-bin wall
Consolidated picking and order sorting
Picktote cache & queue
Pick and place robot arm

Customers value

Rapid ROI

ROI in less than 3 years
Lower initial investment required compared to traditional automation equipment

Rapid deployment

Full system deployment under 2 months
Reuse customers' existing shelves and lofts, rapid deployment

High efficiency

Ingenious ergonomic design yields the highest AMR picking efficiency solution ever, reaching 3 times that of manual picking
99.997% accuracy

High flexibility

Add or remove robots on demand, switch to manual picking easily
Customizable solutions for multiple industries
No single point of failure

High storage capacity

Strongest single floor storage AMR solution multiplies warehouse storage capacity by 2.5 times
Make full use of height space and increase the storage capacity to the same as multi-layer shuttle
