X Series
- Picking
- Put away
- 4 way movement
- Pallet Handling

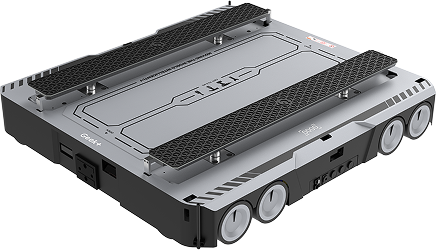

X-Series Storage Robot revolutionizes warehouse operations with its four-way horizontal movement along the tracks within 3-dimensional racking systems, narrow-body design reducing aisle footprint by 40% , enabling fully automated high-density storage, precision retrieval and industrial-grade load capacity.
X Series
.png?width=48&height=48&name=reorder-1-svgrepo-com%202%20(1).png){kind=small}
Working 24x7
Enables Pallet-to-person and other solutions
.png?width=1144&height=424&name=Group%20237631%20(1).png)
X Series Model
The Multi-level ASRS and Four-Way Shuttle solution has integrated storage and picking solutions with high-density storage and high throughput capabilities. It increases storage capacity, throughput, and flexibility, and is cost-effective.
X1200Z
Best for small scale warehouse with racks and small-medium size items
Applications
B2B and B2C situations requiring high storage density and picking efficiency require working with whole pallets, original containers, and piece picking of small, medium, and large items.
Applicable Industries
manufacturing, retail, 3PL, FMCG, pharmaceuticals, cold chain, etc.
Views and Specs
Select a Model
X1200Z
.png)
Select a view
Specifications
Maximum Payload
1200 Kg
Maximum Speed with Load
1.5 m/s
Minimum Lifting Time
2.5 s
.png)
Maximum Speed without Load
1.6 m/s
Maximum Lifting Height
35 mm
.png)
Maximum Shelf Size
Customisable
Dimensions
1000mm X 972mm X 125mm
Weight
270 Kg
X Series Model
The Multi-level ASRS and Four-Way Shuttle solution has integrated storage and picking solutions with high-density storage and high throughput capabilities. It increases storage capacity, throughput, and flexibility, and is cost-effective.
X1200Z
Best for small scale warehouse with racks and small-medium size items
Applications
B2B and B2C situations requiring high storage density and picking efficiency require working with whole pallets, original containers, and piece picking of small, medium, and large items.
Applicable Industries
manufacturing, retail, 3PL, FMCG, pharmaceuticals, cold chain, etc.
Views and Specs
Select a Model
X1200Z
Select a view
Specifications
Maximum Payload
1200 Kg
Maximum Speed with Load
1.5 m/s
Minimum Lifting Time
2.5 s
Maximum Speed without Load
1.6 m/s
Maximum Lifting Height
35 mm
Maximum Shelf Size
Customisable
Dimensions
1000mm X 972mm X 125mm
Weight
270 Kg
Views and Specs
Select a Model
Select a view
Specifications
Maximum Payload
600 Kg
Maximum Speed with Load
2 m/s
Minimum Lifting Time
4 s
Maximum Speed without Load
1.6 m/s
Maximum Lifting Height
60 mm
Maximum Shelf Size
880mm X 880mm
Dimensions
950mm X 702mm X 275mm
Weight
170 Kg
Select a view
Specifications
Maximum Payload
600 Kg
Maximum Speed with Load
2 m/s
Minimum Lifting Time
4 s
Maximum Speed without Load
1.6 m/s
Maximum Lifting Height
60 mm
Maximum Shelf Size
880mm X 880mm
Dimensions
950mm X 702mm X 275mm
Weight
170 Kg
Select a view
Specifications
Maximum Payload
600 Kg
Maximum Speed with Load
2 m/s
Minimum Lifting Time
4 s
Maximum Speed without Load
1.6 m/s
Maximum Lifting Height
60 mm
Maximum Shelf Size
880mm X 880mm
Dimensions
950mm X 702mm X 275mm
Weight
170 Kg
Select a view
Specifications
Maximum Payload
600 Kg
Maximum Speed with Load
2 m/s
Minimum Lifting Time
4 s
Maximum Speed without Load
1.6 m/s
Maximum Lifting Height
60 mm
Maximum Shelf Size
880mm X 880mm
Dimensions
950mm X 702mm X 275mm
Weight
170 Kg
Powered by All-in-One Software
The Geekplus Software Suite is a series of modular software products to support efficient, reliable and flexible robot-based smart warehouse solutions.
The Geekplus Software Suite supports multiple languages and provides open interfaces, ensuring that customers and partners can easily use and integrate with.
G-Studio
G-Service
RMS
WES
IOP
System Portal
