Meet the Geek+ Shelf-to-Person Family

Geekplus Shelf-to-Person solutions utilize advanced mobile robotics to transport inventory shelves and totes directly to picking stations. This approach eliminates unnecessary worker movement, enhances picking accuracy, and significantly reduces labor intensity. Compared to traditional manual methods, our solutions can boost picking efficiency by 200-300%. With three flexible workstation configurations, Geekplus lets you automate picking your way.

Shelf-to-Person PopPick System

Shelf-to-Person System

Three Variants

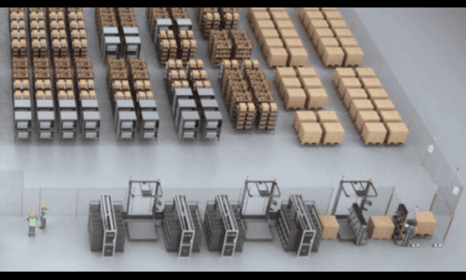

Shelf to Person Geekplus-Mar-31-2025-05-33-34-4222-AM

Shelf-to-Person PopPick
Advanced

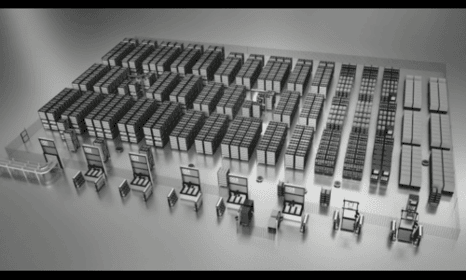

Next Gen Geekplus Shelf-to-Person PopPick Solution-2

Next-Gen PopPick
Compact

Shelf to Person Geekplus-Mar-31-2025-05-33-34-4222-AM

Shelf-to-Person
Standard


Four major advantages

  • 资源 2

    Highly compatible

     Fully compatible with large, medium, and small items, integrating tote, shelf, and pallet storage.

    Adaptable to all scenarios and categories.

  • 资源 5

    High Density Storage

     High storage capacity is achieved by compressing the spacing between totes to 2cm.

  • 资源 3

    High Throughput

    Based on order forecasting and intelligent sorting algorithms, the system utilizes nighttime and off-peak hours for automated sorting to improve the hit rate. Picking robots have a rich array of paths; their deployment density is more than double that of tote-carrying robots, with a 3x maximum throughput capacity.

  • 资源 4

    Cost Effective

    The PopPick workstation is ergonomically designed and has a tote-delivery efficiency of up to 6.5 seconds per box. The cost of picking robots is only half or even lower than that of traditional tote robots. But the handling efficiency is much higher than traditional solutions.



Download Shelf-to-Person Brochure

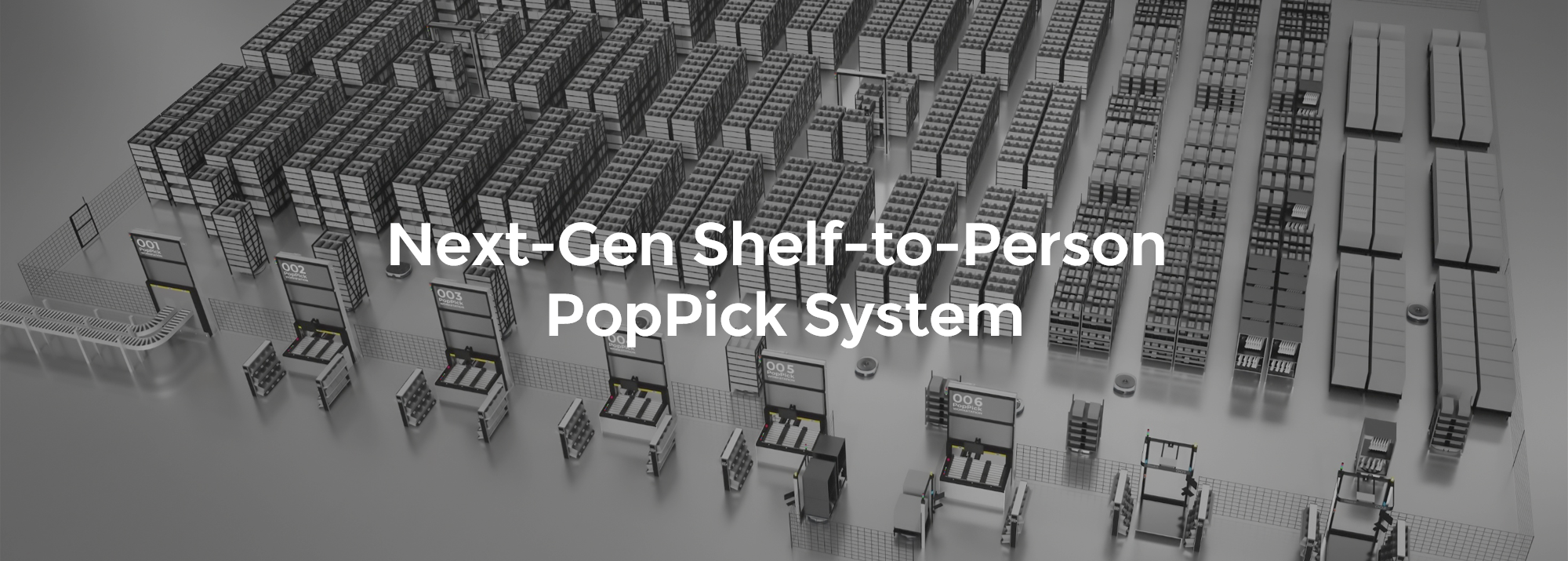

Next Gen Shelf-to-Person PopPick Solution-1



Learn More

Shelf-to-Person PopPick System

All-in-one

 The automated tote picking workstation stores totes on movable shelves. Shelf-to-Person robots transport movable shelves to the PopPick workstation. The targeted tote is automatically removed and presented to the operator for easy picking. This system is also compatible with large items and full pallet picking, offering a solution that meets the storage and picking needs for large, medium, and small items across all categories.

Irregular Items Compatibility

<400% Increased Throughput

3-5x
Storage Density

50%
Cost
Savings

d






Geek+ interact analysis whitepaper


Shelf-to-Person System

Part of Geekplus' comprehensive fulfillment suite, this standard solution utilizes robots to transport shelves and pallets to pickers. By bringing inventory to employees rather than forcing them to search, Geekplus' shelf-to-person process significantly reduces labor intensity while greatly enhancing accuracy and efficiency.

官网P_Banner_EN(3)

1920x552 货到人标准拣选方案 拷贝

Screenshot 2024-03-15 at 14.10.35



  • P500R Picking Solution - GeekPlus P500R
  • 178x335-P800R 官网P_P800 v6.1_240312-1
  • P1200R Picking Solution - GeekPlus 178x335-P1200
  • Dimension Self weight Maximum payload Maximum lifting height Minimum lifting time Maximum speed Maximum rotation speed Maximum slope angle Stop accuracy Navigation Obstacle detection distance Power supply Battery life Run time Certification Payload size Working temperature Charging temperature
  • L950*W702*H275 144 600 60 4 2m/s without load 1.5m/s full load 90°/1.5s,180°/2s 2.5° (slope 4.4%) <±10 Inertial sensors + QR code 2m infrared / 3m laser Lithium-ion, DC51.1V, 30 Ah Full charging and discharging >2500 cycles Self-charges in 10 minutes, operates for 1.5~2 hours CE、ETL、FCC 880*880 / 1020*1020 -10~50℃ -10~40℃
  • L1095*W830*H195mm 142 1000 55 4 2.3m/s without load 2m/s full load 90°/1.5s,180°/2s 2.5° (slope 4.4%) <±10 Inertial sensors + QR code 4m laser / 2m vision Lithium-ion, DC51.8V, 27.9Ah Full charging and discharging >2000 cycles Self-charges in 10 minutes, operates for 1.5~2 hours CE、ETL、FCC 1020*1020 / 1250*1250 -10~45 -10~40℃
  • L1325*W1020*H275mm 288 1200 60 4 2,6m/s without load,2.2m/s full load 90°/1.5s,180°/2.5s 2.5° (slope 4.4%) <±10mm, ±1° Inertial sensors + QR code 5m laser / 2m vision Lithium-ion, DC51.8V, 27.9Ah Full charging and discharging > 2000 cycles Self-charges in 10 minutes, operates for 1.5~2 hours CE 1250*1250 / 1600*1600 -10~45℃ -10~40℃
  • mm kg kg mm s m/s °/s ° mm - m - - h - mm °C °C



Software

The Geekplus fifth-generation platform incorporates the company‘s extensive experience and best practices from various industries. The Warehouse Execution System (WES) enables large-scale robot scheduling based on the operation of massive numbers of picking robots in global warehouses and the deep data mining of robot operation data. Additionally, the WES platform includes a process engine, a strategy engine, and a wide range of page configuration options. These features help customers quickly build intelligent and flexible robotic solutions that are personalized to their specific business needs, facilitating rapid smart upgrades to their systems. The WES platform will continue to evolve in the complex area of mixed-type robot dispatching, empowering customers to solve complicated scenarios in their operations.



Maximum efficiency empowered by smart algorithms

Empowered by Geekplus proprietary smart algorithms, the robotic retrieval system uses the fewest AMR picking robots possible to achieve maximum efficiency while improving warehouse storage capabilities.

Its main functions include:

  • Combined order optimization and picking
  • Dynamic wave selection process
  • Inventory management and smart tallying of goods
  • Adjustment of inventory layout
  • Work station and robot task outline
  • RFID technology integration
  • Heat analysis and goods placement recommendation
